Technology
A paternoster for cars, perfected over 24 years.
The principle is a century old. The engineering — twelve international patents, a five-layer safety stack and a kit that installs in days — is DYPC's.
How it works
Drive on. Step out. Tap. Ride up.
- 01Drive onto the ground pallet
Photo sensors confirm the car is inside the 5,200 × 2,100 mm envelope and under 2,150 kg before anything moves.
- 02Key, RFID or phone
One tap assigns the car to a free pallet. The system remembers which pallet is yours.
- 03The carousel rotates
A top-mounted drive turns a continuous chain; pallets glide up one side and down the other on a double guide rail, always level. 58 dB.
- 04Retrieval in under two minutes
The controller takes the shortest direction to bring your pallet to the ground. Drive off forward — no reversing.
Safety stack
Five layers between a fault and a scratch.
- 01Photo sensors
Envelope and presence check on the ground pallet; the unit will not move with anything in the opening.
- 02Double guide rail
Pallets run on two rails so they stay level and cannot swing, even at the top and bottom turns.
- 03Overrun stopper
Mechanical stop if the pallet travels past its position — independent of the controller.
- 04Emergency stop
E-stop at the operating panel and in the control cabinet; halts within one pallet pitch.
- 05Over-current protection
Drive cuts out on abnormal load — a stuck pallet or an obstruction — before anything bends.
12 international patents
Protected where it's built and where it's sold.
- Vertical rotary parking apparatus — pallet suspension[PATENT NO.] · KR / US / EU
- Double guide rail with anti-swing pallet carrier[PATENT NO.]
- EV charging on a rotating pallet[PATENT NO.]
- Pit-less modular base frame[PATENT NO.]
- Shortest-path retrieval controller[PATENT NO.]
- + 7 more — full list in Resources
Certificates

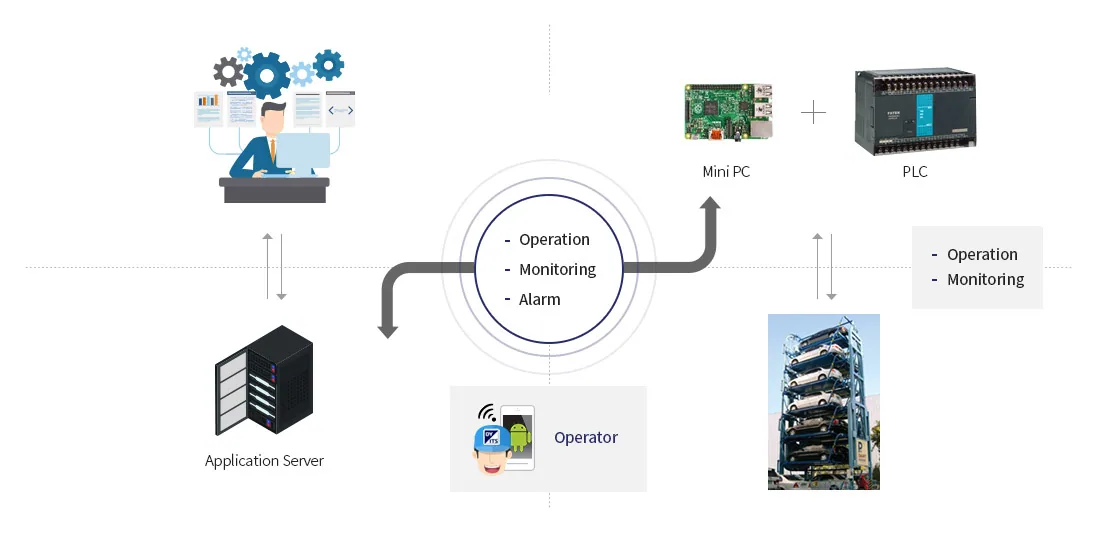

IoT · phone operation
Call, monitor, service — remotely.
Residents call their car from the app; operators see utilisation and faults; the dealer runs diagnostics without a site visit.
Patented · EV charging on pallet
Charge while parked — on any pallet.
A rotating contact feeds a charger on each pallet, so an EV charges wherever it sits in the carousel. [CHARGER kW] per pallet.
