SMART PARKING®
The vertical carousel. Eight to sixteen cars on two parking spaces, in three series — L for sedans, SU for SUVs, SUX for large SUVs. The height grows with the model; the footprint never does.
Render · SM16L · three-quarter · night
8–16
Cars
3–5
Days to install
58 dB
In operation
−40 / +55
°C operating range
15–20
Years design life
0
Pit · civil work
Types of SMART PARKING®
Three series. The height follows the model; the footprint never does.

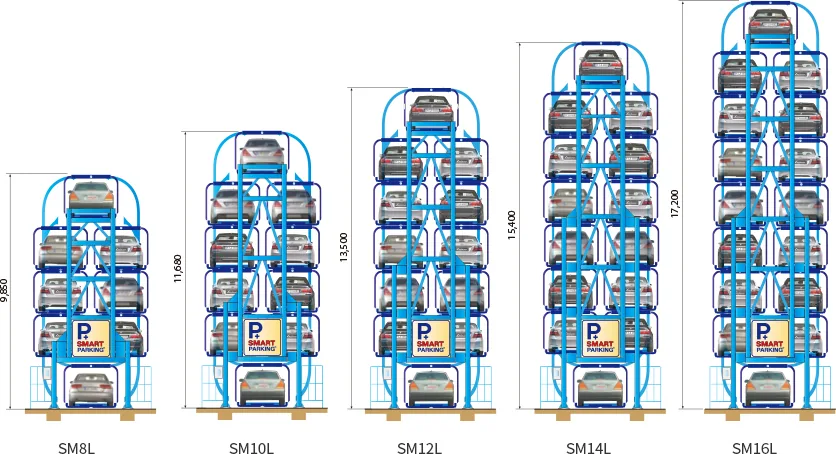

Specification · L series
Five models. One footprint.
| Model | SM8L | SM10L | SM12L | SM14L | SM16L |
|---|---|---|---|---|---|
| Cars | 8 | 10 | 12 | 14 | 16 |
| Height | 9,850 | 11,680 | 13,500 | 15,400 | 17,200 |
| Footprint (L × W) | 6,370 × 4,850 | 6,370 × 4,850 | 6,370 × 4,850 | 6,370 × 4,850 | 6,370 × 4,850 |
| Max car (L × W × H) | 5,200 × 2,100 × 1,600 | 5,200 × 2,100 × 1,600 | 5,200 × 2,100 × 1,600 | 5,200 × 2,100 × 1,600 | 5,200 × 2,100 × 1,600 |
| Max car weight | 2,150 kg | 2,150 kg | 2,150 kg | 2,150 kg | 2,150 kg |
| Net weight | 14.9 t | 18.6 t | 22.1 t | 24.9 t | 28.6 t |
| Geared motor | 7.5 kW | 7.5 kW | 7.5 kW | 11 kW | 15 kW |
| Speed | 3.1 – 4.2 m/min | 3.1 – 4.2 m/min | 3.6 – 4.2 m/min | 3.6 – 4.2 m/min | 5 – 8 m/min |
| Motor control | Inverter control | Inverter control | Inverter control | Inverter control | Inverter control |
| Operation | Ten-key / touch screen / touch & RFID | Ten-key / touch screen / touch & RFID | Ten-key / touch screen / touch & RFID | Ten-key / touch screen / touch & RFID | Ten-key / touch screen / touch & RFID |
| Power source | AC 415 / 400 / 380 / 220 V, 3-phase, 50 / 60 Hz | AC 415 / 400 / 380 / 220 V, 3-phase, 50 / 60 Hz | AC 415 / 400 / 380 / 220 V, 3-phase, 50 / 60 Hz | AC 415 / 400 / 380 / 220 V, 3-phase, 50 / 60 Hz | AC 415 / 400 / 380 / 220 V, 3-phase, 50 / 60 Hz |
| Install | 3–5 days | 3–5 days | 3–5 days | 3–5 days | 3–5 days |
| Noise | 58 dB | 58 dB | 58 dB | 58 dB | 58 dB |
| Operating temp. | −40 to +55 °C | −40 to +55 °C | −40 to +55 °C | −40 to +55 °C | −40 to +55 °C |
| Certification | CE (TÜV) · KTSA | CE (TÜV) · KTSA | CE (TÜV) · KTSA | CE (TÜV) · KTSA | CE (TÜV) · KTSA |

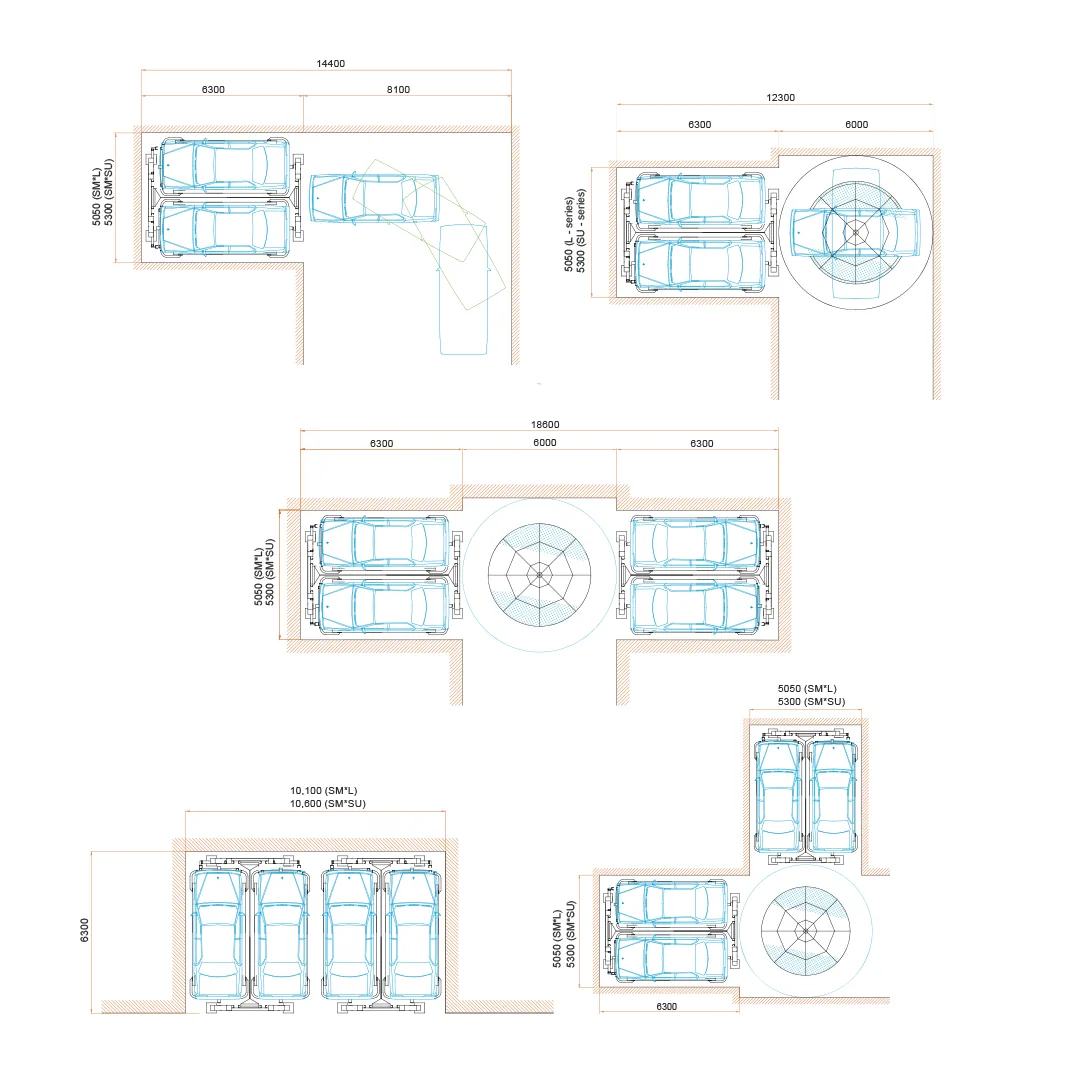

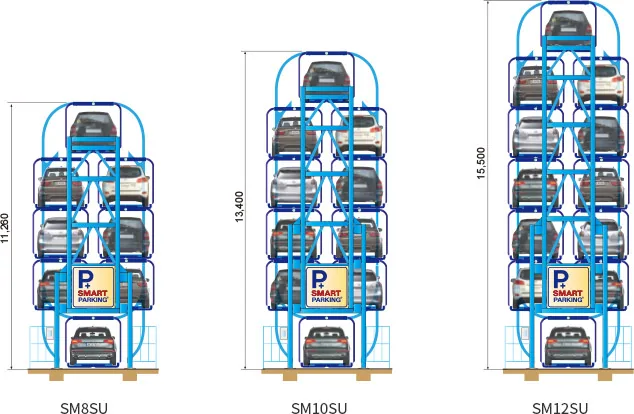

Specification · SU series
Three models for SUVs.
| Model | SM8SU | SM10SU | SM12SU |
|---|---|---|---|
| Cars | 8 | 10 | 12 |
| Height | 11,260 | 13,400 | 15,500 |
| Footprint (L × W) | 6,370 × 5,100 | 6,370 × 5,100 | 6,370 × 5,100 |
| Max car (L × W × H) | 5,200 × 2,100 × 1,900 | 5,200 × 2,100 × 1,900 | 5,200 × 2,100 × 1,900 |
| Max car weight | 2,400 kg | 2,400 kg | 2,400 kg |
| Net weight | 17.3 t | 21.2 t | 24.6 t |
| Geared motor | 7.5 kW | 7.5 kW | 11 kW |
| Speed | 4 – 5 m/min | 4 – 5 m/min | 4 – 5 m/min |
| Motor control | Inverter control | Inverter control | Inverter control |
| Operation | Ten-key / touch screen / touch & RFID | Ten-key / touch screen / touch & RFID | Ten-key / touch screen / touch & RFID |
| Power source | AC 415 / 400 / 380 / 220 V, 3-phase, 50 / 60 Hz | AC 415 / 400 / 380 / 220 V, 3-phase, 50 / 60 Hz | AC 415 / 400 / 380 / 220 V, 3-phase, 50 / 60 Hz |
| Install | 3–5 days | 3–5 days | 3–5 days |
| Noise | 58 dB | 58 dB | 58 dB |
| Operating temp. | −40 to +55 °C | −40 to +55 °C | −40 to +55 °C |
| Certification | CE (TÜV) · KTSA | CE (TÜV) · KTSA | CE (TÜV) · KTSA |

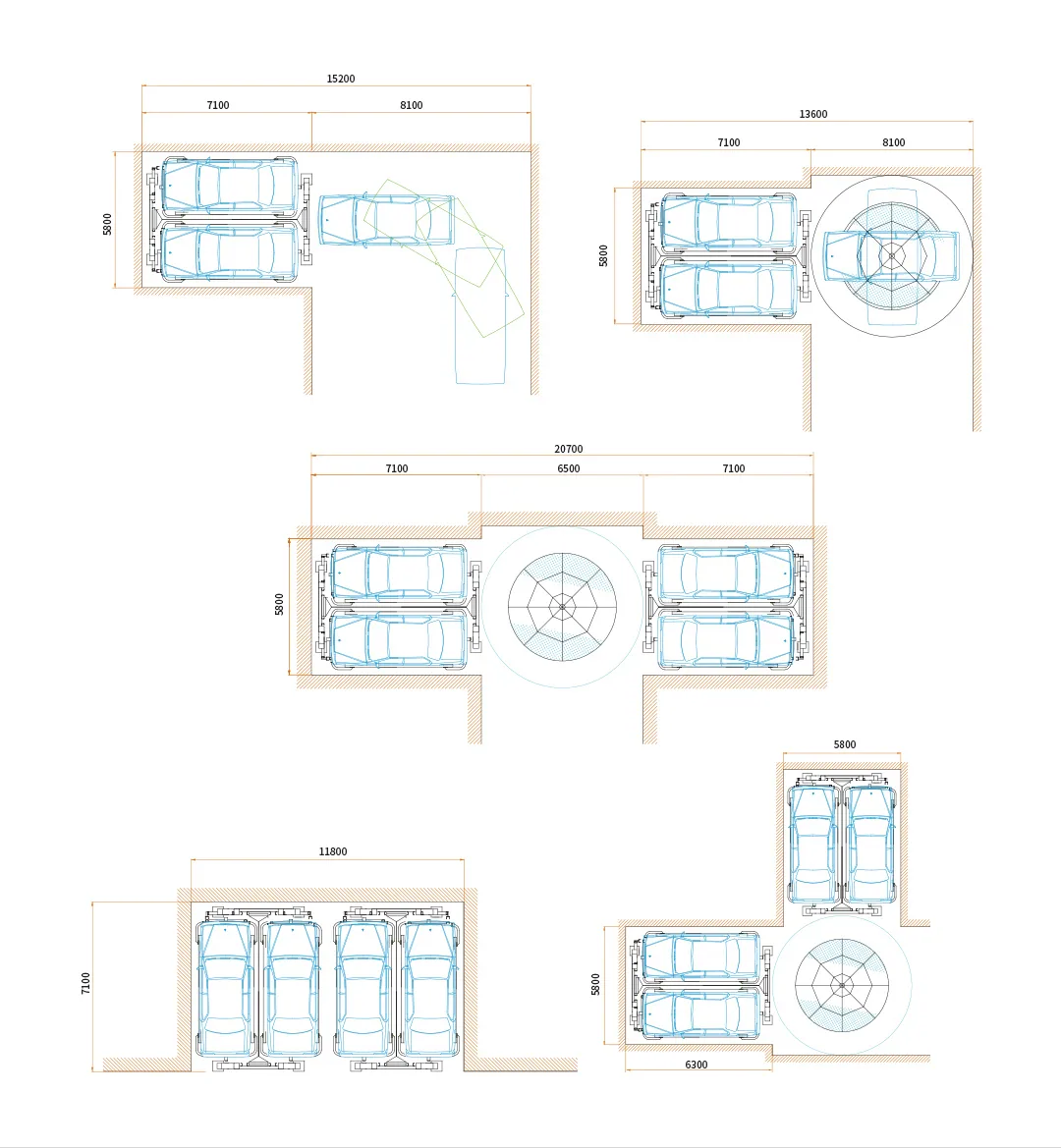

Specification · SUX series
One model for large SUVs.
| Model | SM12SUX |
|---|---|
| Cars | 12 |
| Height | 16,000 |
| Footprint (L × W) | 7,100 × 5,600 |
| Max car (L × W × H) | 5,700 × 2,200 × 2,000 |
| Max car weight | 2,800 kg |
| Net weight | 26 t |
| Geared motor | 15 kW |
| Speed | 4 – 5 m/min |
| Motor control | Inverter control |
| Operation | Ten-key / touch screen / touch & RFID |
| Power source | AC 415 / 400 / 380 / 220 V, 3-phase, 50 / 60 Hz |
| Install | 3–5 days |
| Noise | 58 dB |
| Operating temp. | −40 to +55 °C |
| Certification | CE (TÜV) · KTSA |
Safety devices · every model
- Photo sensors front and rear (car length)
- Photo sensors both sides (car width)
- Over-current relay for motor protection
- Emergency stop device
- Overrun stopper on the pallet
- Double guide rail (anti-swing)
Drawings · SM16L
Plan, side and front.
Plan
Side elevation
Front elevation
Optional IoT
Call your car from your phone.
Operate and monitor the unit from a phone: retrieve before you reach the lobby, see status and faults, let the dealer service it remotely. RFID or key operation stays standard.
