Elevator tower
ACE PARKING®
An elevator tower. A central lift carries each car to a stacked bay on either side, so a plot that held a handful of cars parks twenty to sixty per tower — and towers combine.
Typical sites: Hospitals, malls, dense urban blocks.
20–60
Cars per tower
90 m/min
Lift speed
100–140 s
Retrieval
2
Towers in Cairo
Specification
Key figures.
Full specification, drawings and certificates for ACE PARKING® are supplied by the dealer with the feasibility study.
- Models
- AC20L – AC60L · AC20SU – AC50SU
- Capacity per tower
- 20 – 60 cars (L) · 20 – 50 cars (SU)
- Max car · L
- 5,200 × 2,100 × 1,600 mm · 2,150 kg
- Max car · SU
- 5,200 × 2,100 × 2,000 mm · 2,400 kg
- Lifting
- Geared motor + wire rope · 22 – 37 kW
- Lift speed
- 90 m/min max.
- Car retrieval
- 100 – 140 s
- Motor control
- IGBT inverter

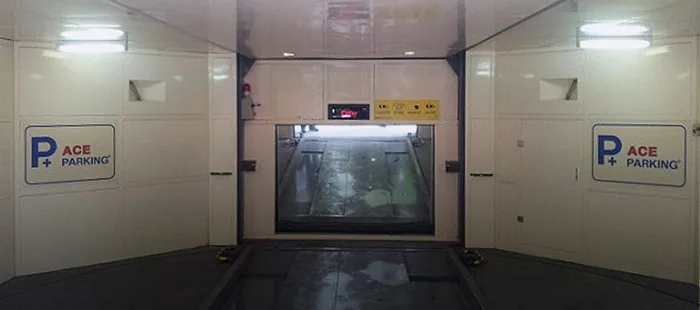

Inside the system

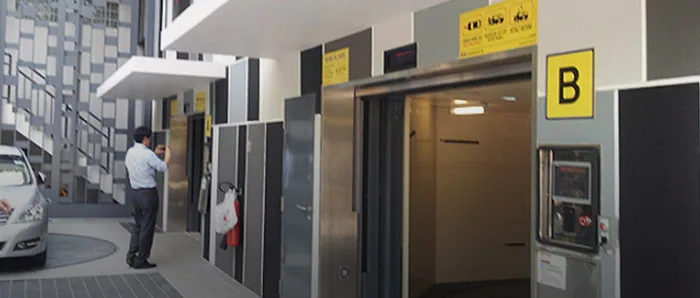

Drive in. Step out. The lift does the rest.
