Two-wheelers
BIKE PARKING®
The same rotary idea, scaled to two-wheelers. Sixty-four to ninety-six bikes on an 8.1 × 5.3 m footprint — for campuses, stations and residential towers.

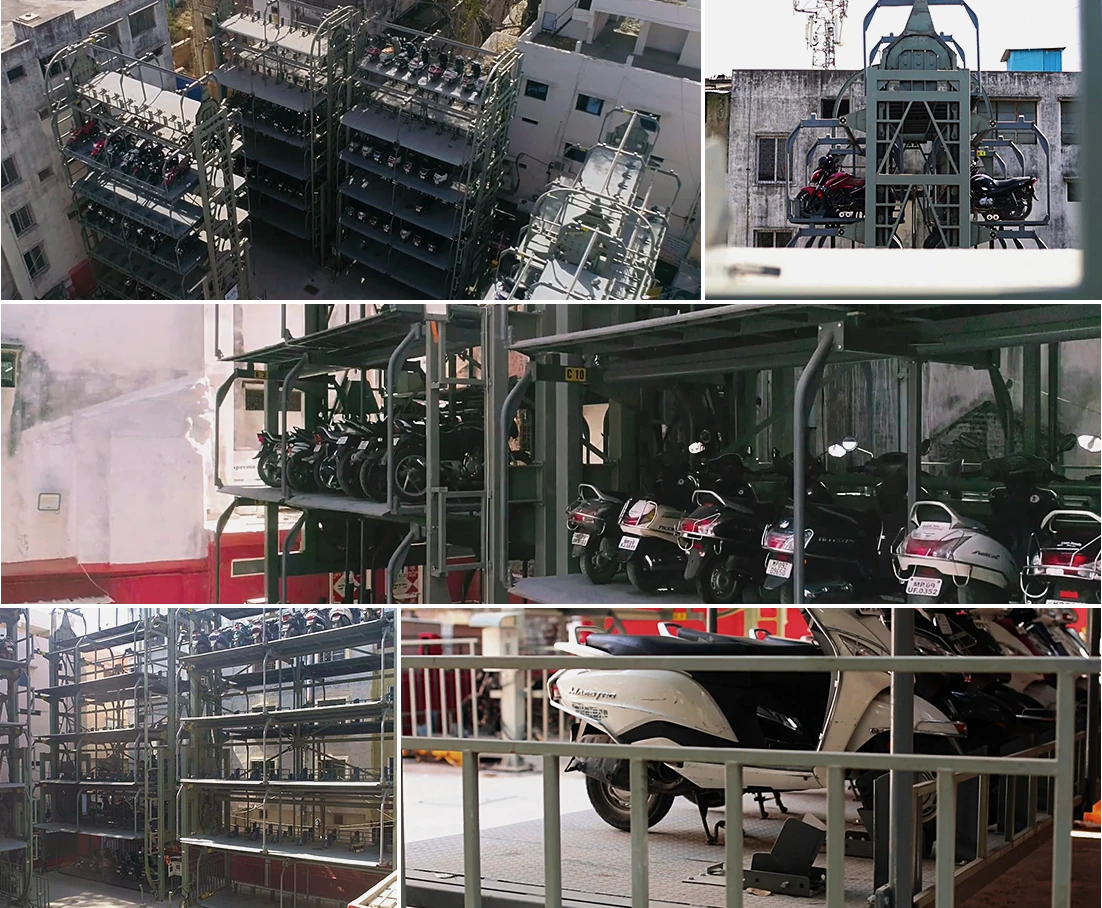

Typical sites: Campuses, stations, residential towers.
64–96
Bikes
8.1 × 5.3 m
Footprint
200 kg
Max per bike
0
Pit
Specification
Key figures.
Full specification, drawings and certificates for BIKE PARKING® are supplied by the dealer with the feasibility study.
- Models
- SM8B · SM10B · SM12B
- Capacity
- 64 · 80 · 96 bikes
- Footprint
- 8,100 × 5,300 mm
- Height
- 11,500 · 13,500 · 15,700 mm
- Net weight
- 9.8 · 11.5 · 13.5 t
- Max bike
- 2,100 × 750 × 1,800 mm · 200 kg
- Geared motor
- 7.5 · 7.5 · 11 kW
- Speed
- 5 – 8 m/min
